Email / SMS Feedback Invitation V3 API

Use to send an SMS or email feedback invitation to the customer after an interaction, transaction or milestone.

---

1.Send Send Email / SMS

---

Preparation

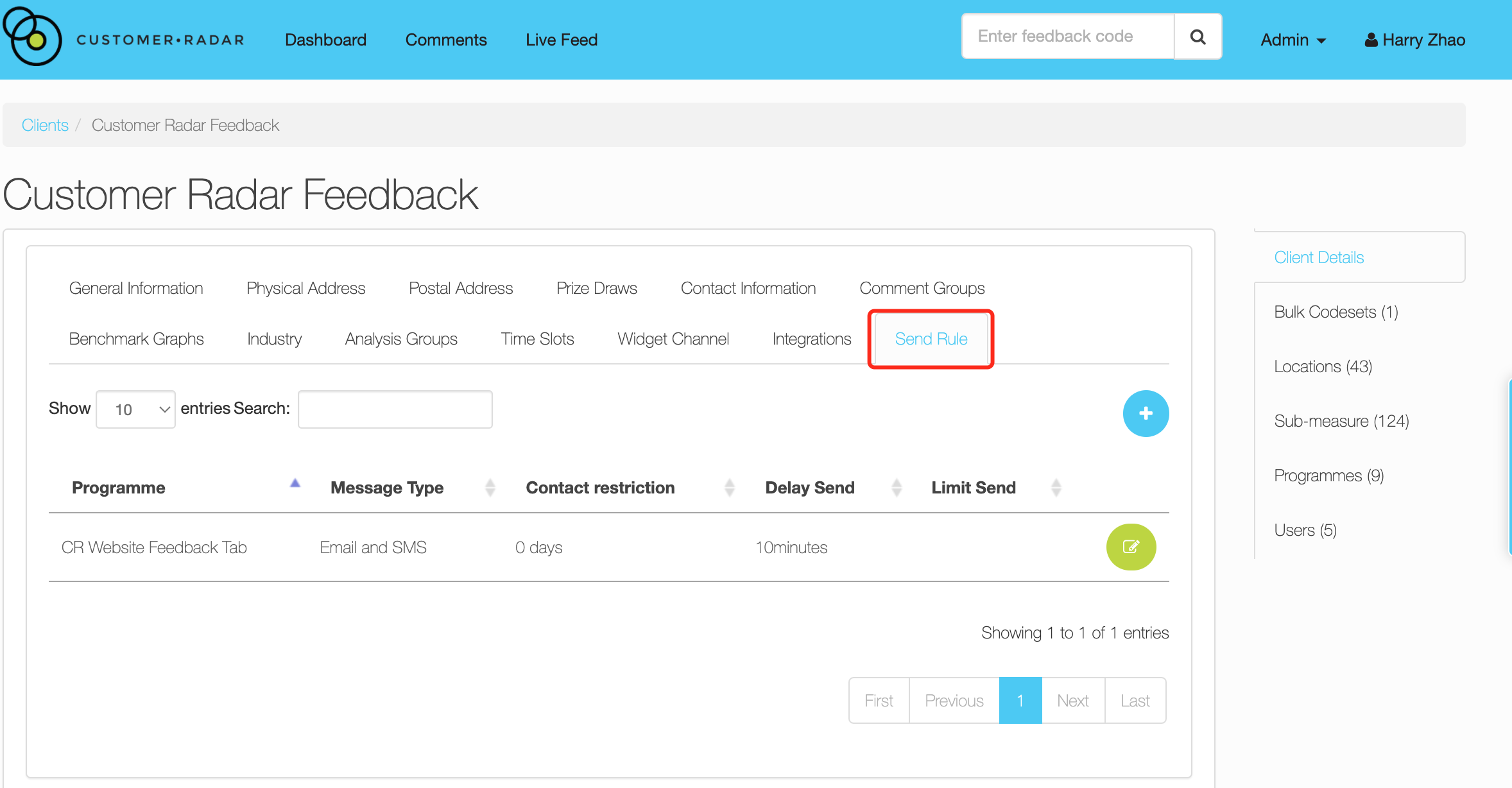

Please create a Send Rule in the Client Edit page

Obtain programme and location information

All location and programme information can be obtained through POM Lookup V2

1.1.1 Implementation

CR support team shall:

1.1.1.1 Generate a username and password for the client.

1.1.1.2 Set up / create a Client, Location, POM (Point Of Measure), Programme and share these details along with the username and password to the clients’ technical team and ask them to first authorize themselves by:

1.1.1.3 Authorization

1.1.1.3.1 Request

Method:   POST

URL:         api.feedback.fyi/auth/login

Example Body:

{
    "username":"testing" ,
     "password":"testing12345"
  }

1.1.1.3.2 Response

Example Response:

{
"token": "eyJ0eXAiOiJKVs23bGciOiJIUzI1NiJ9.eyJleHAfdsgfSDYyNDQsInVzZXJOYW1lIjoidGVzdCJ9.f5Lsz6jPsKFXL4fktRUvAD5wj3b0_ihm_rOrW9jkRGw",
"expiration": 1517434473.269,
"userName": "testing"
}



1.1.1.3.3 Implementation

This token needs to be set in the header for all requests and is valid for 60 minutes once generated. Once the token has expired, use “/auth/login” to authorise again using provided username and password and receive a new token.

1.1.1.4 Send interaction / transaction details

1.1.1.4.1 Request

Method:   POST

URL:         api.feedback.fyi/invitation

Headers:

Key	Value Example	Format	Req*	Details
Authorization	eyJ0sUHBDusmUUmiYQiL.CJaJ0-XAiabs	Alpha	Yes	The token which was received after successful submission of username and password.
Content-Type	application/json	JSON	Yes	Body or JSON format. Some tools may populate this value by default when adding raw JSON to Body.

Body Type:         Raw / JSON

Body:

Key	Value Example	Format	Req*	Details
clientDisplayId	8291a9ed952342c5b5fe2915f2189e7c	Alphanumeric	Yes	CR Support will provide clientDisplayID to clients. Look at specific set up under Client in the CR system.
programmeDisplayId	1cf118a0326d47aa851a90b9674e90aa	Alphanumeric	YES	CR Support will provide a programmeDisplayId the client. Look at a specific Programme set up under Client in the CR system.
sendData
email	[e-mail]		YES
mobile	021000001
firstName	Dave		NO
lastName	Brown		NO
locationDisplayId	1cf118a0326d4y2331dc3273891e90aa	Alphanumeric	YES	CR Support will provide locationDisplayId to clients. Look at a specific location set up under Client in the CR system.
pomDisplayId	7547ct569yh67n0326vghddte86bkkn	Alphanumeric	NO*	CR Support will provide pomDisplayId to clients. Look at a specific POM set up under Client/Location in the CR system. *Required IF location has two or more POMs / sub-measures
metadata			NO	Clients shall be able to pass any additional information after putting info in the specific tag and value. Key is mapped to internal CR programme settings and must match case/spelling between client and CR. Clients can add as many fields as required. To add / update fields, contact the CR Support team at [e-mail].
key	booking_reference
value	122334345

Example Request:

{
 "clientDisplayId": "8291a9ed952342c5b5fe2915f2189e7c",
 "programmeDisplayId": "1cf118a0326d47aa851a90b9674e90aa",
 "sendData": [
    {
     "email": "[e-mail]",
     "mobile": "0211234321",
     "firstName": "Dave",
     "lastName": "Brown",
     "locationDisplayId": "1cf118a0326d47aa851a90b9674e90aa",
     "pomDisplayId": "7547ct569yh67n0326vghddte86bkkn",
     "metadata": [
      {
       "key": "booking_reference",
       "value": "122334345"
     },{
       "key":"invoice_no",
       "value":"INV00001"
        }
      ]
    }
  ]
}

Important:

1.1.1.4.2 clientDisplayId will be provided to you by Customer Radar Support.

1.1.1.4.3 If you receive an error such as:

a. No Feedback code found for this clientDisplayId, locationDisplayId, pomDisplayId & programmeDisplayId.

The locationDisplayId, pomDisplayId & programmeDisplayId can be obtained via the lookup v2 APIs.

b. To send an email invitation, the programme must set Postmark ID. Provide correct details & try again.

This Postmark ID is set by CR Support, contact us using [e-mail] to resolve.

1.1.1.4.4 Response

Example Response:

{
  "code": "00000",
  "description": "success",
  "data":"846673197418938368"
}

1.1.1.4.5 Implementation

This api should respond with 200 (success) if the SMS or Email has been triggered or should notify requesters about the error message 400 (Bad Request) if any mandatory attribute is missing in request or is wrong.
